For years, the narrative surrounding 3D printing and injection molding was one of competition—a disruptive new technology poised to unseat a century-old manufacturing titan. As of late 2025, however, this simplistic view has given way to a far more nuanced and powerful reality: a future that is not competitive, but symbiotic. Rather than replacing injection molding, additive manufacturing has evolved into its most crucial partner, revolutionizing the process from initial design validation to final part production. From creating ultra-fast prototype molds and complex production tooling to enabling previously impossible part geometries, 3D printing is injecting a new level of speed, flexibility, and performance into the injection molding workflow. This hybrid approach is profoundly changing the economics of manufacturing, unlocking new design freedoms, and solidifying the dominance of both technologies in their respective, and increasingly collaborative, domains.

Injection molding remains the undisputed king of mass production. Its ability to produce millions of identical, high-quality parts at a very low cost per unit is unmatched. However, its primary drawback has always been the high upfront cost and long lead times associated with creating the hard steel tooling required. This “tooling barrier” makes the process ill-suited for low-volume runs, highly customized products, or rapid design iteration. It is precisely this gap that 3D printing has so brilliantly filled, creating a powerful synergy that leverages the strengths of both technologies.

The relationship has matured beyond simple prototyping. Today, additive technologies are being used to create sophisticated mold inserts with features that traditional machining cannot produce, such as conformal cooling channels that dramatically boost productivity. They are used to create “bridge tooling” that can produce tens of thousands of parts, filling the crucial gap between prototyping and mass production. This collaboration is collapsing development timelines, de-risking investment in expensive steel molds, and ultimately allowing companies to bring better products to market, faster than ever before.

Revolutionizing the Tooling: From Prototype to Production

The most immediate and impactful application of 3D printing in the molding industry is its ability to rapidly create molds and mold components. This application can be segmented into several key areas, each offering a distinct value proposition.

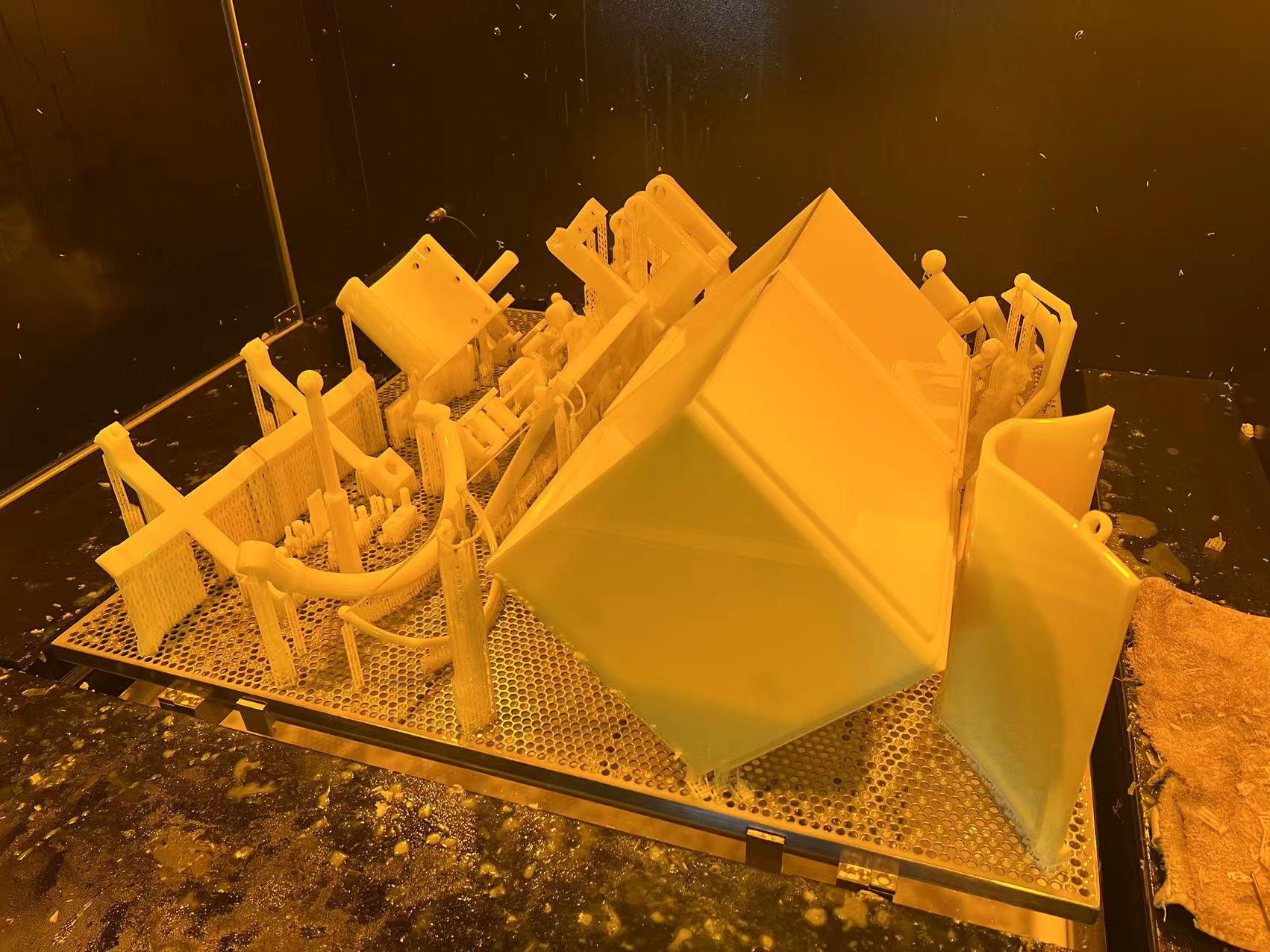

1. Rapid Prototyping Molds: In the past, creating a prototype mold from aluminum or soft steel was a process that could take weeks and cost thousands of dollars. Today, using technologies like Stereolithography (SLA) or Material Jetting, a plastic prototype mold can be printed overnight for a fraction of the cost. These molds, often made from high-temperature photopolymer resins, can typically withstand the injection of 50 to 100 parts using the actual production-intent plastic. This is a game-changer for product development. It allows engineers to test the form, fit, and function of a design with real materials, identify potential flaws, and iterate on the design multiple times in the time it would have taken to create a single machined prototype mold. This process of “failing fast and cheap” dramatically improves the final product design and ensures that the investment in a multi-thousand-dollar steel production mold is made with maximum confidence.

2. Bridge Tooling: Closing the Production Gap: A significant challenge in product launches is bridging the gap between the final prototype and the arrival of the high-volume production tooling, which can take months to build. 3D-printed “bridge tools” solve this problem. Using more robust materials, including metal 3D printing (Direct Metal Laser Sintering – DMLS) for mold inserts, manufacturers can create tooling capable of producing 5,000 to 100,000+ parts. This allows companies to launch their products and begin generating revenue months earlier than would otherwise be possible. It also serves as a perfect solution for low-volume production runs, such as for niche market products, custom medical devices, or end-of-life spare parts, where the cost of a traditional steel mold could never be justified.

3. Conformal Cooling: The Unseen Performance Enhancer: This is arguably the most sophisticated and impactful synergy between the two technologies. In a traditionally manufactured mold, cooling channels are drilled in straight lines, which often leads to inefficient and uneven cooling of the part. This can increase cycle times and cause quality issues like warpage. 3D printing, particularly DMLS with steel or aluminum powders, allows for the creation of intricate cooling channels that perfectly conform to the part’s geometry, like blood vessels wrapping around an organ. These “conformal cooling” channels provide vastly more efficient and uniform heat extraction. The results are dramatic: cycle time reductions of 30-50% are commonly reported. For a high-volume molder, this translates directly into a massive increase in productivity and profitability, all while improving part quality and dimensional stability. This is a feature that is simply not possible to create with conventional manufacturing, making it a prime example of additive technology enhancing, rather than replacing, traditional methods.

Design Freedom and Part Consolidation

The collaboration extends beyond tooling into the design of the end-use plastic parts themselves. The capabilities of 3D printing have educated a new generation of engineers to think in terms of complex geometries, organic shapes, and integrated features. While these highly complex parts might be 3D printed directly in low volumes, the lessons learned are being applied to injection molded part design.

Engineers are now more adept at designing for part consolidation. For example, an assembly that once consisted of five separate molded parts and fasteners might be redesigned as a single, more complex part that can still be injection molded. This reduces assembly time, lowers costs, and creates a stronger, more reliable final product.

Furthermore, 3D printing is used to create highly complex jigs, fixtures, and end-of-arm tooling (EOAT) for the automation systems that support the injection molding process. A custom, lightweight, 3D-printed gripper for a robot can be designed and produced in a matter of hours, perfectly contoured to handle a newly molded part. This ability to rapidly create custom automation components further accelerates the entire production workflow and reduces the downtime associated with product changeovers.

The Economic Calculus: When to Print, When to Mold

The decision of whether to use 3D printing or injection molding for a final part is now a sophisticated economic calculation, not a simple ideological choice. The key determining factor is volume.

• 1 to ~500 Parts (Prototyping & Ultra-Low Volume): Direct 3D printing of the end-use part is almost always the most cost-effective and fastest method. There are no tooling costs to amortize.
• ~500 to ~10,000 Parts (Low- to Mid-Volume): This is the prime territory for 3D printed bridge tooling. The cost of the printed mold is significantly lower than a steel tool, and this cost can be amortized effectively over this volume range.
• 10,000+ Parts (High-Volume & Mass Production): Traditional injection molding with hard steel tooling remains the undisputed champion. The high initial tooling cost is amortized over a huge number of parts, bringing the per-part cost down to mere cents, a level that 3D printing cannot currently approach.

This framework demonstrates that the technologies are largely complementary. 3D printing dominates the low-volume, high-mix end of the spectrum, while injection molding dominates the high-volume, low-mix end. The “battleground” is the middle-volume range, where bridge tooling offers a compelling hybrid solution.

Conclusion: An Inseparable Partnership

The future of plastics manufacturing is unequivocally a hybrid one. The old paradigm of 3D printing versus injection molding is obsolete. Today, they are deeply intertwined technologies, each making the other more effective. 3D printing provides the speed and flexibility that injection molding lacks in the early stages of product development and for low-volume production. Injection molding provides the scale, speed, and low per-part cost that 3D printing cannot match for mass production.

For modern injection molders, embracing additive manufacturing is no longer optional; it is a strategic necessity. Those who successfully integrate 3D printing into their workflow—for prototyping, for creating advanced tooling with features like conformal cooling, and for building agile automation solutions—will be faster, more innovative, and more competitive. This powerful partnership is pushing the boundaries of what is possible in plastic part manufacturing, paving the way for more complex, efficient, and accelerated innovation across every industry.
